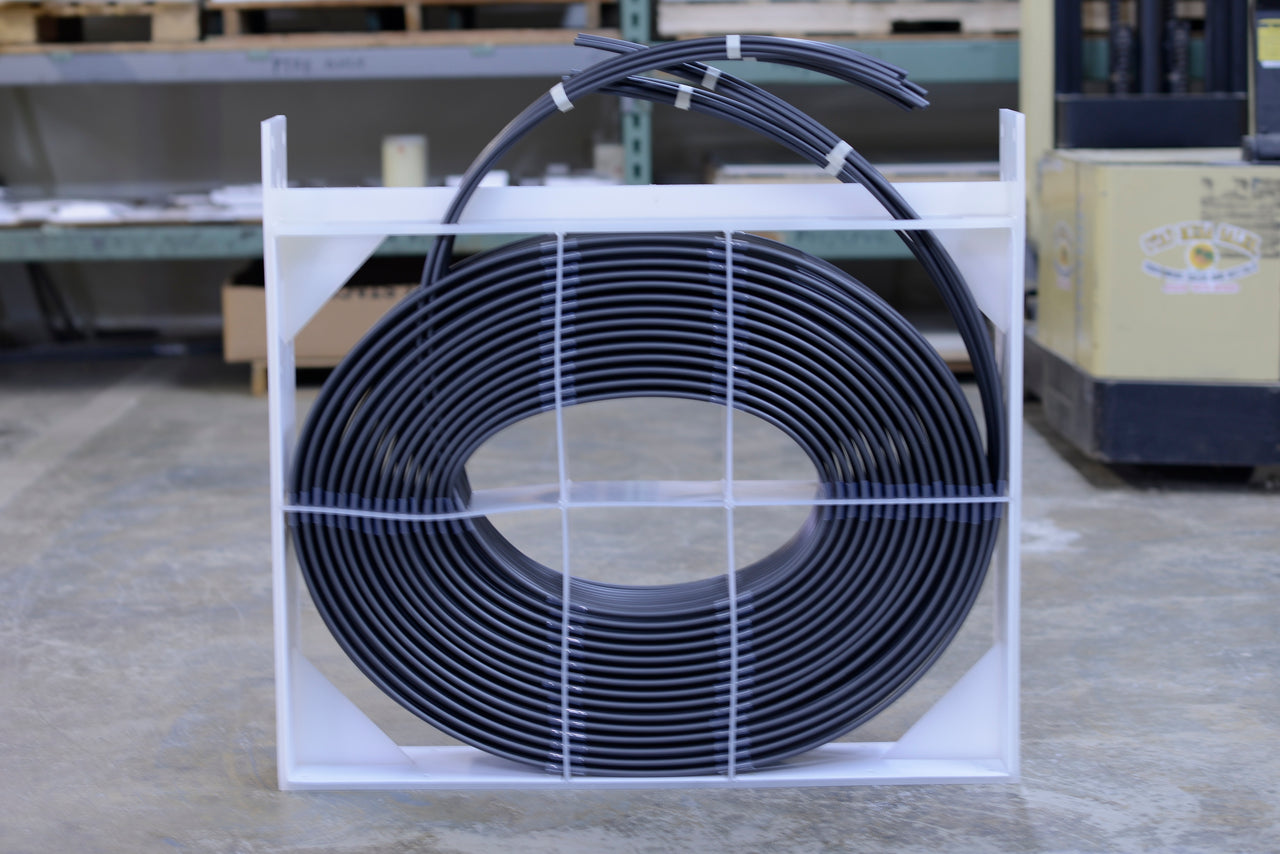

Fluoropolymer Immersion Heat Exchangers

Fluoropolymer Immersion Heat Exchangers

Low or Out of Stock
Contact us for more information.

  • Fluorotherm's™ Immersion Coil Heat Exchangers have been proven worldwide in a vast range of applications since 1965. Ruggedness of design, a vast experience base, internal control of all aspects of specifications and manufacturing, and unmatched technical support are the key reasons behind customer loyalty over the decades.

This is a custom-designed product. If you are interested in this product, please fill out the following form and contact us at support@fluorostore.com

Fluorotherm's™ Immersion Coil Heat Exchangers have been proven worldwide in a vast range of applications since 1965. Ruggedness of design, a vast experience base, internal control of all aspects of specifications and manufacturing, and unmatched technical support are the key reasons behind customer loyalty over the decades.

Fluorotherm™ heat exchangers possess corrosion resistance second only to diamond (which is nature’s most perfect material). Its non-stick characteristic resists fouling and maintains heat transfer efficiency over its lifecycle. Fluorotherm™’s design provides the largest tube-to-tube spacing, thus assuring uniform heat transfer between the steam and acid. This feature reduces the possibility of scale build up and clogging (to form hot spots), which can damage the tubing over time. Therefore both our materials and design prevent thermal degradation.

Most importantly, Fluorotherm™ heat exchangers do not have a single tubing weld joint. Plastics weld joints are notoriously weak spots that are the first to fail due to heat and mechanical stress. We offer tube repair kits in the rare case of tube damage. This repair can be conducted on site without the need to either send it back or replace a part. All of these reasons contribute to a long lifecycle – a feature that alternative heat exchangers do not provide.

The design elements used in our construction consist of several safety factors to ensure that performance is not compromised when used properly. This translates to the lowest cost of ownership in the industry – the amount that includes the initial purchase cost as well as the cost of operating the heat exchanger after it is properly installed. Due to this, we have retained a high degree of loyalty among our customers – some major ones have remained with us since the 1970’s.

Our heat exchangers have evolved considerably in design and new materials. Currently, Fluorotherm™ carries over 800 basic design variations, which are applicable to most situations. However, non-standard or existing applications that need a retrofit can also be fulfilled by custom heat exchanger designs offered by Fluorotherm™. Contact us today to find out more.

Materials of Construction

Fluorotherm’s™ materials of construction for the Immersion Coil Heat Exchanger consists of either polypropylene, PVDF, or PTFE for the frame, and either FEP, PFA, or PTFE for the tubing. Custom designs may include other fluoropolymer materials such as ETFE, ECTFE or PCTFE.

Advantages

The advantages of our heat exchanger products over alternative designs include:

  • Low operating cost - The operating cost includes maintenance such as inspection, cleaning, downtime, and repair. This is primarily due to the relatively simple design that involves no plastic welding joints
  • No weld joints - Unlike metals that are subject to more rapid degradation under aggressive pickle bath conditions, Fluorotherm™’s heat exchangers withstand aggressiveness
  • Off the shelf repair kits - In case of an unlikely event of accidental tube damage, these kits enable a quick repair of the tubing
  • No tube bundling - The strong tubing coils are optimally spaced so acid flow and therefore heat transfer is maintained without fouling.
  • Constant operating efficiency - Fluoropolymers such as PTFE, FEP or PFA, are inherently “non-stick”, so fouling by scale deposition is minimized, assuring a constant operating efficiency that does not decrease over time. No other material, except natural diamond, inhibits sticking of the pickle bath particulates more than fluoropolymers

Fluorotherm™ H2 TM Conductive Immersion Coil Heat Exchangers

Fluorotherm™ manufactures H2 conductive tubing coil heat exchangers for use in restricted spaces in new and retrofit applications. This product provides between 2.3 to 2.7-times the heat transfer capability of clear, natural tubing coils. The heat transfer rate is similar to steel without the corrosion attack susceptibility. It is also used in baths where electrical static discharge is a major concern. This product has undergone several iterations of improvement in properties and is unique to Fluorotherm’s™ line of heat exchanger offerings.

 Hybrid Heat Exchangers

Fluorotherm's™ hybrid frame heat exchangers were made specially for ultrapure and aggressive chemical heating and cooling. This new product combines the best components and design geometry for efficient heat transfer. The design, evolved from decades of field experience, is driven by the need to inhibit particulate settling on, and fouling of heat transfer surfaces. These particles (sludge and precipitates) fall out from the chemical reactions that occur during metal treatment in mineral acids, in the form of oxides, sulfates, chlorides, phosphates and other materials.

The particle buildup over time, coats surfaces, or worse, causes serious damage to the heat exchanger, interrupting processes. At a minimum, this results in reduced heat transfer.

Exotic alloy metal heat exchangers are difficult to maintain due to rapid particulate, foulant or sludge build up during use. They are also expensive to repair. The hybrid design eliminates flat surfaces upon which the salts can settle. In addition, the materials of construction have a much lower surface energy surface than metal or other plastics, thus inhibiting particle build up. Both of these features have been brought together in an optimized fashion in our new hybrid design.

The hybrid heat exchanger provides a large between-tube spacing, for free and unrestricted fluid flow. It allows intimate contact between the fluid and the hot or cold heat exchange surfaces, resulting in maximizing heat transfer efficiency.

Available Downloads (PDFs):

Quote Request Form - Immersion Heat Exchangers

Please fill out the following form for a custom quote of our Immersion Heat Exchangers

Step 1 of 7

This field is required.

This field is required.

This field is required.

Please indicate what you are trying to achieve

Please select at least one option.

Please indicate the process used

Please select at least one option.

Please indicate the tank material

Please select at least one option.

If the tank is rectangular, please indicate the dimensions L x W x H with units

This field is required.

If the tank is rectangular, please indicate the liquid level with units

This field is required.

If the tank is cylindrical, please indicate its height and diameter with units and orientation (horizontal or vertical on base)

This field is required.

Does the tank have any of the following? Please check all that apply.

Please select at least one option.

If you indicated the tank is insulated, please specify the insulation thickness with units

This field is required.

If you indicated the tank has a manhole, please specify the opening diameter/size in units

This field is required.

Please indicate the type of tank. You only need to fill out the remaining questions on this page for the type of tank you select. Note: a recirculating tank is also referred to storage tank, holding tank etc.

Please select at least one option.

For Process Tanks, please indicate the material being processed.

Please select at least one option.

For Process Tanks, please indicate the processing rate in Tons or Lbs or Kg/Hr

This field is required.

For Process Tanks, please indicate the entry and exit material temperatures in either deg F or deg C

This field is required.

For Process Tanks, please indicate the processed material specific heat in J/kg·K

This field is required.

For Recirculating Tanks, please indicate the head load in BTU/hr or kW. The heat load is the amount of heat that must be added (by heating) or removed (by cooling) by the heat exchanger in this tank.

This field is required.

For Recirculating Tanks, please indicate the entry and exit temperature in deg F or deg C.

This field is required.

For Recirculating Tanks, please indicate the flow rate with units

This field is required.

For Recirculating Tanks, please describe the flow in and out of this tank. If the flow is on a batch or intermittent basis, indicate the flows and time and frequency of the batch flow. The method of recirculation varies widely. Examples of this may be gravity flow into tank and pumped flow return into material processing tank (pickle tank for example) or the reverse of this flow arrangement. There are numerous variations depending upon the position, location and size of recirculating tank. For example one larger tank may serve one or more material processing tanks.

This field is required.

Please indicate the preferred location(s) of the heat exchanger

Please select at least one option.

Please indicate primary chemical component. If this information is not entered, you must indicate pH and organic or inorganic, and the specific heat, specific gravity or density below.

This field is required.

Please indicate the specific heat.

This field is required.

Please indicate the specific gravity or density in lb/ft³ or equivalent.

This field is required.

Please indicate the Bath Start and Bath Finish / Bath Maintain temperatures in deg F or deg C

This field is required.

Please note that size and cost of heat exchanger is sensitive to heat up time. Faster heat up time requires increased heat exchanger size and cost and this may be significantly higher than that required to maintain operating temperature. This is especially true for large tanks, high operating temperatures and low pressure steam (less than 15 psig) and low temperature hot water boilers. We recommend sizing the heat exchanger based on the longest heat up time that your process will allow.

This field is required.

If Heating process was indicated, please specify the medium

Please select at least one option.

If Heating via Steam, please specify the steam pressure available for heat-up with units. Please note that the steam pressure must be available at or near the tank.

This field is required.

If Heating via Steam, please indicate if a regulator is used

Please select at least one option.

If Heating via Steam and the pressure specified above is 15 psig or lower, please indicate the approximate distance of boiler from your tank.

This field is required.

If Heating via Hot Water, please specify the temperature available for heat-up in deg F or deg C

This field is required.

If Heating via Hot Water, please indicate the temperature at the outlet in deg F or deg C.

This field is required.

If Cooling process was indicated, please specify the medium

This field is required.

If Cooling, please indicate both the inlet and outlet temperatures of the coolant in deg F or deg C.

This field is required.

If Cooling, please specify the coolant head pressure with units

This field is required.

Please indicate if there are any space restrictions or interference in the bath. If you have a maximum space allocated for the heat exchanger please indicate the dimensions of this space. Examples of restrictions may be support structures, air sparge lines, any piping that would restrict the location of the heat exchanger. Normally the heat exchanger is mounted directly against a wall and occasionally the thickness of the heat exchanger (i.e., width of space) is limiting for smaller tanks (less than 1000 gallons)

This field is required.

Please indicate any additional important information regarding your tank or process.

This field is required.
