Fluoropolymer Shell and Tube Heat Exchangers

Fluoropolymer Shell and Tube Heat Exchangers

Low or Out of Stock
Contact us for more information.

  • Fluorotherm™ shell and tube heat exchangers are used for in-line heating and cooling applications for corrosive and ultrapure fluids. These units have been designed with efficient heat transfer as the primary purpose, offering a baffled cross flow heat exchanger.

Description

This is a custom-designed product. If you are interested in this product, please fill out the following form and contact us at support@fluorostore.com

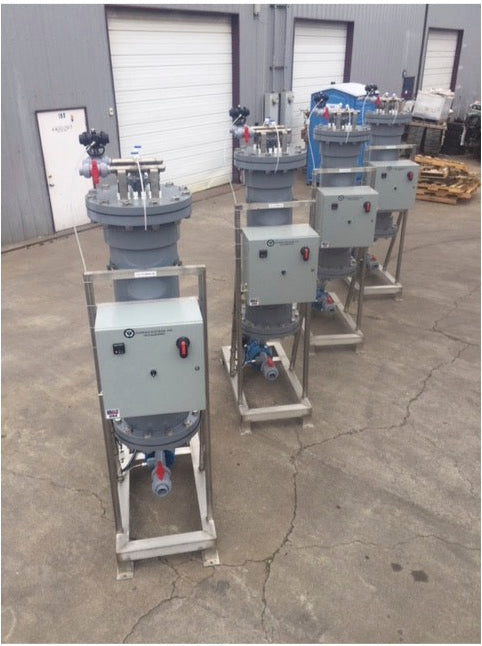

Fluorotherm™ shell and tube heat exchangers are used for in-line heating and cooling applications for corrosive and ultrapure fluids. These units have been designed with efficient heat transfer as the primary purpose, offering a baffled cross flow heat exchanger. Our shell and tube heat exchangers are commonly used for oil refinery and chemical processes applications, and while they're similar to the immersion heat exchanger in terms of overall function, the shell and tube heat exchanger features an innovative design that facilitates the movement of fluids through both tubes and an exterior shell, providing heightened versatility.

Shell and Tube Heat Exchanger Design

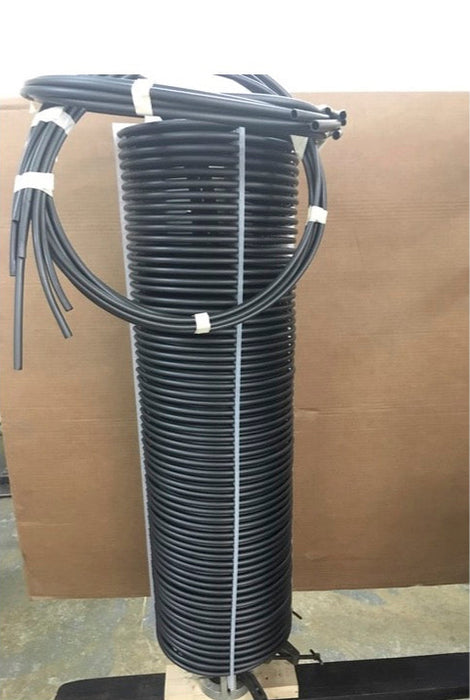

The tube side fluid flows through an ultrapure, chemically inert fluoropolymer pathway. The unit can be operated in cross flow, counterflow or parallel flow mode. The unidirectional shell and tube side flows allows for complete purging of the unit after a batch operation is completed. Also, since there is no flow reversal, the formation of stagnant pockets is eliminated during continuous or batch operation.

Fluorotherm™ offers shell & tube heat exchangers with heat transfer surface areas ranging from less than 1 sq. ft to 100 sq. ft. These sizes cover a wide range of applications for sanitary flow design (when needed). These include laboratory, scientific, sampling, and industrial cooling and heating applications. The unique feature of Fluorotherm™ designs is that they can be disassembled, inspected, cleaned and, if necessary, repaired.

Shell and Tube Heat Exchanger Materials

The current fluoropolymer materials of construction for Fluorotherm™ shell & tube heat exchangers are PVC, CPVC and PVDF for the shell, and PTFE tubing, FEP, PFA, or PVDF for the tubing. New materials, offering high chemical resistance and inertness for ultrapure fluids, are currently under investigation for our next generation of products for the semiconductor, green technology, laboratory, sampling, and general industry market segments.

Available Downloads (PDF):

Quote Request Form - Shell and Tube Heat Exchangers

Please fill out the following form for a custom quote of our Shell & Tube Heat Exchangers

Step 1 of 3

This field is required.

This field is required.

This field is required.

Please enter the expected tube heat load in BTU/hr or kW

This field is required.

Please enter the tube process fluids (chemical names) and their expected flow rates in gpm, lb/hr, or equivalent

This field is required.

Please indicate the tube entry and exit temperatures in deg C or deg F

This field is required.

Please indicate both the tube maximum pressure and the maximum pressure drop in psig

This field is required.

Please indicate the tube specific heat in BTU/lb 0F

This field is required.

Please indicate the tube density or specific gravity in gm/cc or lb/cu.ft

This field is required.

Please indicate the tube thermal conductivity in Btu/hr.sq.ft. 0F/ft

This field is required.

Please indicate the tube viscosity in centipoise or lb/ft.hr

This field is required.

Please indicate the tube particle types and loading %

This field is required.

Please enter the expected shell heat load in BTU/hr or kW

This field is required.

Please enter the shell process fluids (chemical names) and their expected flow rates in gpm, lb/hr, or equivalent

This field is required.

Please indicate the shell entry and exit temperatures in deg C or deg F

This field is required.

Please indicate both the maximum pressure and the maximum pressure drop in psig for the shell

This field is required.

Please indicate the shell specific heat in BTU/lb 0F

This field is required.

Please indicate the shell density or specific gravity in gm/cc or lb/cu.ft

This field is required.

Please indicate the shell thermal conductivity in Btu/hr.sq.ft. 0F/ft

This field is required.

Please indicate the shell viscosity in centipoise or lb/ft.hr

This field is required.

Please indicate the shell particle types and loading %

This field is required.

Please enter any additional information not covered in this questionnaire.
