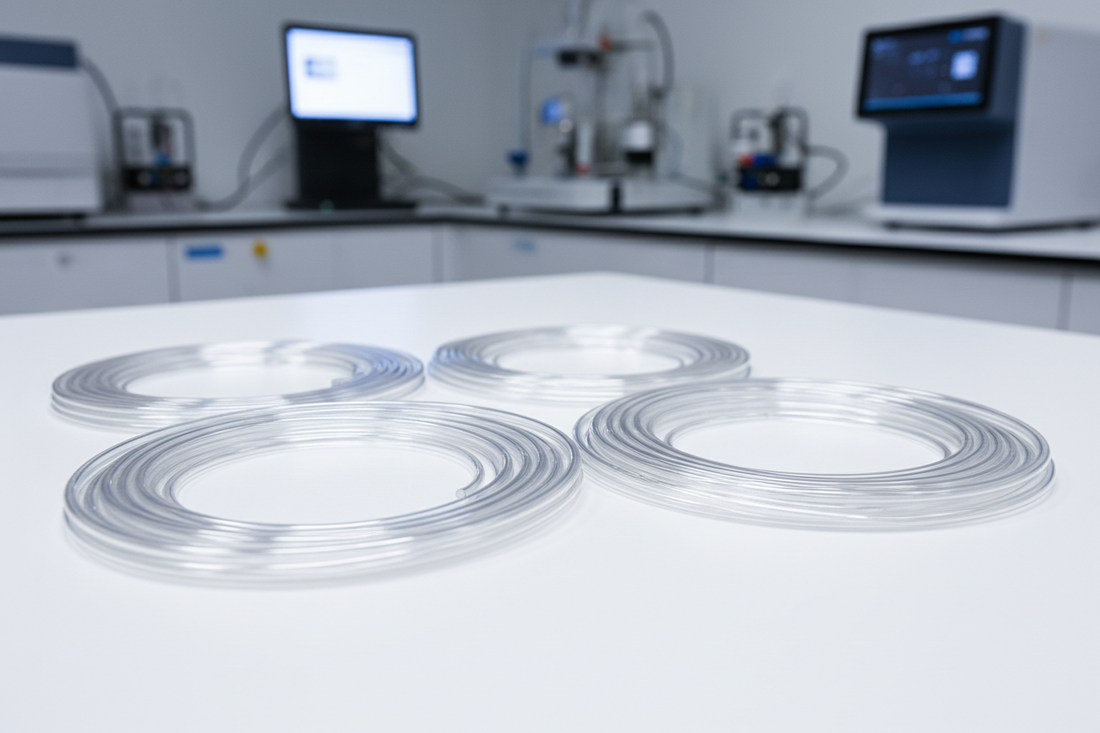

Why Fluoropolymer Tubing Matters in Medical Diagnostic Equipment
Tubing for diagnostic equipment must do more than simply contain a liquid. Depending on the application, it may need to resist aggressive reagents, minimize contamination, maintain consistent dimensions, and tolerate repeated cleaning cycles.
These requirements make fluoropolymers such as PTFE, FEP, and PFA useful materials for selected diagnostic fluid-handling applications.
What Is an In Vitro Diagnostic System?
The FDA defines in vitro diagnostic products, commonly called IVDs, as reagents, instruments, and systems used to examine specimens taken from the human body. Examples include systems used to analyze blood, urine, tissue, or other biological samples.
Many automated diagnostic instruments contain networks of tubing that perform tasks such as:
- Moving a patient sample between processing steps
- Delivering reagents and buffers
- Dispensing precise amounts of fluid
- Supplying rinse and cleaning solutions
- Transferring instrument waste
- Connecting pumps, valves, sensors, and sampling components
Each fluid line has its own requirements. Tubing used for a cleaning chemical, for example, may need different properties than tubing that carries a patient sample or measurement reagent.
Why Tubing Material Matters
A diagnostic instrument may perform hundreds or thousands of fluid-handling cycles. Over time, unsuitable tubing can change in ways that affect the system.
Potential problems include:
- Chemical attack from reagents or cleaning solutions
- Swelling, cracking, or embrittlement
- Absorption or retention of process fluids
- Buildup on the tubing’s interior surface
- Dimensional changes that affect flow
- Kinking or collapse in tightly routed areas
- Contamination introduced by the tubing material
Even when a tubing failure does not cause an obvious leak, changes to the fluid path can interfere with consistent operation.
This is why equipment designers must evaluate the complete service environment rather than selecting tubing based only on nominal dimensions.
Chemical Resistance for Reagents and Cleaning Solutions
Diagnostic equipment can contain a wide variety of fluids, including buffers, solvents, acids, bases, stains, and cleaning agents.
Fluoropolymers are known for broad chemical resistance, making them useful when conventional plastics or elastomers may react with the fluid being transferred.
However, general chemical resistance does not eliminate the need for application-specific testing. Compatibility can be affected by:
- The exact chemical
- Chemical concentration
- Operating temperature
- Exposure duration
- Pressure or vacuum
- Mechanical stress
- Cleaning and disinfection cycles
A tubing material that performs well during short-term exposure may behave differently when it remains in continuous contact with the same chemical.
Smooth Surfaces and Fluid Carryover
The interior surface of a fluid line can affect how easily the system is flushed between cycles.
Fluoropolymers have smooth, low-friction surfaces that can help reduce the tendency of some materials to adhere to the tubing wall. This may be beneficial in applications where the system repeatedly alternates between samples, reagents, and rinse solutions.
Tubing alone cannot prevent carryover or contamination. The instrument’s complete fluid-path design—including connectors, valves, dead spaces, flushing volume, and cleaning procedures—must be validated.
Nevertheless, tubing material and surface characteristics are important parts of that design.
Choosing Between PTFE, FEP, and PFA
PTFE, FEP, and PFA share many useful properties, but they are not identical.
PTFE Tubing
PTFE offers broad chemical resistance, high-temperature capability, and a very low-friction surface.
It may be suitable for chemically demanding fluid paths where transparency is not required. PTFE is generally opaque and can be less flexible than some melt-processable fluoropolymers, depending on the tubing dimensions and wall thickness.
FEP Tubing
FEP provides strong chemical resistance while also offering transparency.
Clear tubing can help technicians visually inspect a fluid path for bubbles, discoloration, residue, or incomplete flushing. FEP can therefore be useful where visibility is important and the application temperature is within the material’s operating range.
PFA Tubing
PFA combines excellent chemical resistance with melt processability and strong performance in demanding fluid-handling systems.
It is often considered for high-purity applications, repeated chemical exposure, or systems where stress-crack resistance and long-term reliability are priorities.
The best choice depends on the application rather than the assumption that one fluoropolymer is universally superior.
Dimensional Consistency and Instrument Performance
Tubing dimensions can affect more than mechanical fit.
Inside diameter can influence flow resistance and the amount of fluid retained in a line. Outside diameter affects compatibility with fittings, connectors, and instrument routing features. Wall thickness can influence flexibility, pressure capability, and kink resistance.
When specifying tubing for diagnostic equipment, designers should define:
- Nominal ID and OD
- Acceptable dimensional tolerances
- Required wall thickness
- Minimum bend radius
- Pressure or vacuum conditions
- Continuous-length requirements
- Fitting and connection method
- Color or transparency requirements
A tubing specification should reflect the instrument’s actual operating conditions rather than relying only on a standard catalog size.
Documentation and Regulatory Considerations
An individual piece of tubing is not automatically approved for every medical or diagnostic application simply because it is made from a particular polymer.
The finished-device manufacturer remains responsible for determining the applicable regulatory, quality, chemical, and biological requirements. Depending on the tubing’s role, the evaluation may include:
- Resin and material certifications
- Lot traceability
- Extractables and leachables
- Chemical compatibility
- Cleanliness and packaging
- Manufacturing consistency
- Risk associated with patient-sample contact
- Performance after cleaning or sterilization processes
A certification such as USP Class VI may provide useful supporting information, but it does not by itself establish that the finished diagnostic system is safe, effective, or suitable for a particular use.
Questions to Answer Before Selecting Tubing
Before requesting tubing for a diagnostic instrument, consider the following:
- What fluid will the tubing carry?
- Will it contact patient samples, reagents, cleaning chemicals, or waste?
- What are the operating temperature and pressure conditions?
- Is transparency necessary for visual inspection?
- How frequently will the fluid path be cleaned or flushed?
- What dimensions and tolerances are required?
- Does the line need flexibility, kink resistance, or vacuum capability?
- What documentation, traceability, and packaging controls are necessary?
The Fluid Path Is Part of the Measurement System
In medical diagnostic equipment, tubing is not simply a connection between two components. It is part of the system that prepares, transports, and processes the fluids involved in testing.
Selecting the appropriate tubing material can help improve chemical compatibility, support consistent fluid movement, simplify visual inspection, and reduce unplanned maintenance.
Fluorostore supplies PTFE, FEP, PFA, and PVDF tubing in a range of standard and custom dimensions. Contact our team with your fluid, temperature, pressure, dimensional, and documentation requirements to identify an appropriate starting point.
